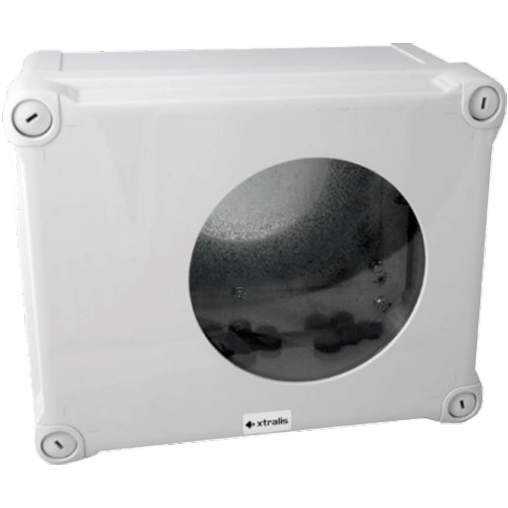

The glazed housings are made of ABS. The glass window causes minimal attenuation of the UV and IR beams. Installation and servicing is extremely easy. The imager housing has two glands for easy wiring. The Emitter housing can be used with both battery powered and 24V wired emitter. To access to the Imagers FTDI socket the lid needs to be removed. A separate cable inlet directly below the FTDI socket is normally sealed but can be fitted with an additional gland supplied with the enclosure for servicing or upgrading the imager.
Both the imager and emitter housing have 3 pre-drilled screw connections for fixed mounting of the unit. The imager has an additional glass window at the bottom of the housing to allow the Alarm and Fault LEDs to be seen from below. Where condensation is expected, both housings can be equipped inside with a heater of minimum 10W.
- IP66, NEMA 4-4X for use in harsh environments
- Imager with extra viewing opening for Alarm and Fault LEDS
- Dedicated entry for OSP-001 FTDI cable
- Fast and easy installation- entry and exit opening for wiring
- Protects against dust and water
- IP66, NEMA 4-4X for use in harsh environments
- Imager with extra viewing opening for Alarm and Fault LEDS
- Dedicated entry for OSP-001 FTDI cable
- Fast and easy installation- entry and exit opening for wiring
- Protects against dust and water
