VESDA VFT-15


DISCONTINUED

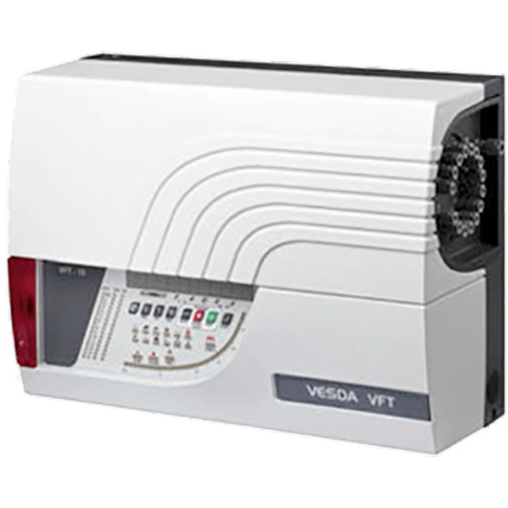

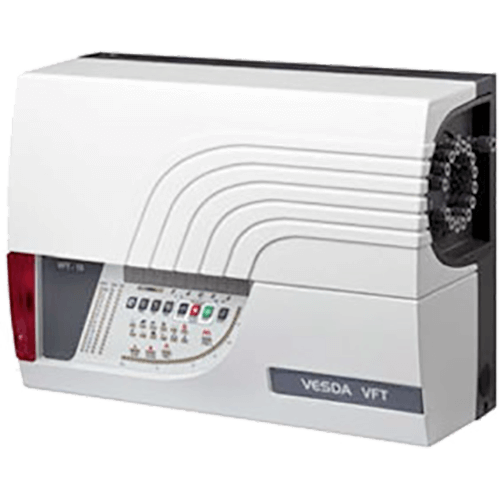

VESDA VFT-15 Aspirating Smoke Detector

The VESDA VFT-15 by Xtralis is a unique and versatile high-sensitivity aspirating smoke detector able to pinpoint the source of incipient smoke to speed response, enhance investigation and minimize business disruption and downtime where location is critical and a visual search is impossible to perform quickly. VESDA VFT is the only aspirating smoke detector on today’s market to provide identification of up to 15 protected areas.

FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • VFT-15: 0.01% to 20% obscuration/m (0.003% to 6.10% obscuration/ft)
  • VFT:15-C: 1% to 20% obscuration/m (0.3% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 15 x 50 m (15 x 164 ft) microbore sampling tubes
  • Enhanced 0.7 bar rotary vane vacuum pump
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • 5 relay outputs
  • Optional relay module
  • Coverage area of up to 1,500 m2 (16,150 sq ft)

FEATURES

  • VFT-15: 0.01% to 20% obscuration/m (0.003% to 6.10% obscuration/ft)
  • VFT:15-C: 1% to 20% obscuration/m (0.3% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 15 x 50 m (15 x 164 ft) microbore sampling tubes
  • Enhanced 0.7 bar rotary vane vacuum pump
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • 5 relay outputs
  • Optional relay module
  • Coverage area of up to 1,500 m2 (16,150 sq ft)

APPLICATIONS

The Xtralis VESDA VFT is ideal for protecting several rooms or separate areas within a building, such as those within:

  • Clean rooms - small, adjacent clean rooms
  • Computer rooms - equipment cabinets
  • Control rooms - equipment cabinets
  • Elevators - hoistways, control rooms and lobbies
  • Historical buildings - separate rooms and object protection
  • Hospitals - separate operating theatres or laboratories
  • Hotels - guest rooms
  • Laboratories - separate fume hoods or rooms
  • Museums/art galleries - small display rooms
  • Offices - multiple offices
  • Prisons and correctional institutions
  • Telecommunication facilities - equipment cabinets

CERTIFICATIONS

  • VdS
  • EC/CPD EN54-20
  • FM
  • CSFM

If you would like a copy of the certificate, contact your local Sales Manager or visit the Xtralis Partner Extranet.

SERVICE & SUPPORT

VESDA relay interface is compatible with all major fire alarm panels.

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.
