VESDA-E Power Supply


VESDA-E Power Supply

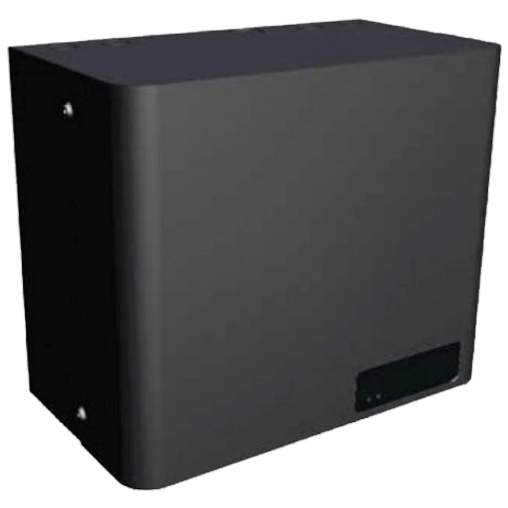

VESDA-E Power Supply Units are uniquely designed to complement the style and appearance of VESDA-E aspirating smoke detectors (ASD) and are technically matched to provide sufficient current and battery charging capacity to meet the requirement of EN 54-4. The STX variants are VdS approved and CE marked to EN54-4 so are particularly suitable for use in territories where these approvals are required. They may also be suitable in territories where ISO 7240-4 is required.

Model Nos. VPS-220-STX, VPS-220-STX-SLV, VPS-250-STX
FEATURES
CERTIFICATIONS
SPECIFICATIONS
SERVICE & SUPPORT
  • Available in two sizes: 0.5 A / 14 Ah (max) and 2 A / 24 Ah (max)/li>
  • Available in two colours: Matt Black or Silver/Grey (RAL 7047)
  • Temperature compensated charging to maximize battery life
  • Designed to blend in with VESDA-E detectors
  • Knockouts designed to line up with VESDA-E detectors
  • External LED indication
  • Relay outputs for connection to the general-purpose input for fault monitoring
  • 230 Vac only

FEATURES

  • Available in two sizes: 0.5 A / 14 Ah (max) and 2 A / 24 Ah (max)/li>
  • Available in two colours: Matt Black or Silver/Grey (RAL 7047)
  • Temperature compensated charging to maximize battery life
  • Designed to blend in with VESDA-E detectors
  • Knockouts designed to line up with VESDA-E detectors
  • External LED indication
  • Relay outputs for connection to the general-purpose input for fault monitoring
  • 230 Vac only

CERTIFICATIONS

  • VdS: G209140 & G209193
  • CE: 0786-CPD-20783 & 0786-CPD-20890
  • EN54-4: 1997+A1:2002+A2:2006 0786

SPECIFICATIONS

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES


Download VESDA-E Product Brochure
Download VESDA-E Power Supplies Data Sheet, European


Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
