XCL-VEA-XXX

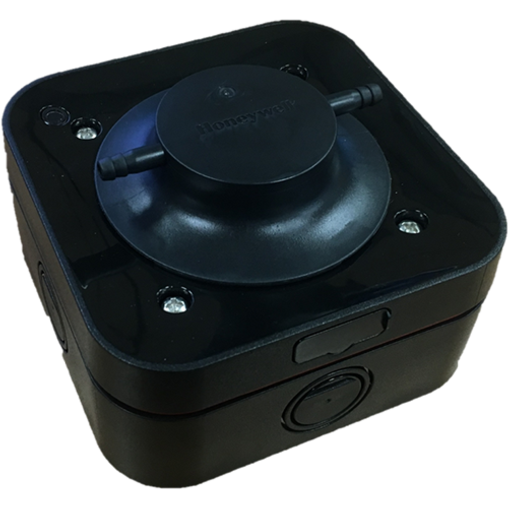

VESDA Sensepoint XCL - Micro Bore Aspirating Gas Detector

Xtralis has developed with its sister company Honeywell Analytics a new concept of aspirated gas detectors. When used with the VESDA-E VEA; VESDA Sensepoint XCL provides early warning of the presence of gases for occupant protection and system monitoring whilst at the same time ensuring protection against fire threats.

Through its embedded Bluetooth interface, VESDA Sensepoint XCL enables customers to pair the gas detector with their smart device applications to perform installation, commissioning and maintenance. This ensures a faster VESDA Sensepoint XCL installation, rapid configuration, simplicity to operate, and simplified maintenance.

Model Nos. XCL-VEA-CO-RA, XCL-VEA-CO-RM, XCL-VEA-CH4-RA, XCL-VEA-CH4-RM, XCL-VEA-H2-RA, XCL-VEA-H2-RM, XCL-VEA-CO2VV-RA, XCL-VEA-CO2VV-RM, XCL-VEA-CO2PP-RA, XCL-VEA-CO2PP-RM, XCL-VEA-CO-RA-5, XCL-VEA-CH4-RA-5, XCL-VEA-H2-RA-5
Download VESDA Sensepoint XCL - Micro Bore ASD System Data Sheet VESDA Sensepoint XCL - Micro Bore ASD System Data Sheet
FEATURES
APPLICATIONS
APPROVALS
SERVICE & SUPPORT
ORDERING INFORMATION
  • Available Sensors:
    • Carbon Monoxide (CO): 0 – 1000ppm
    • Combustible (CAT): 0 – 100% LEL (Methane, Hydrogen, Propane, Ethanol, Butane, Octane, etc.)
    • Hydrogen (H2): 0 – 1000ppm
    • Carbon Dioxide (CO2): 0 – 5.0% v/v
    • Carbon Dioxide (CO2): 0 – 5000ppm
  • Factory calibrated detectors (CAT: Factory calibrated to CH4)
  • Integral alarm status LEDs
  • Bluetooth 4.0 (Bluetooth Low Energy)
  • Integrates with PLCs/HVAC/BMS/FACP
  • Configurable relays
  • 4-20 mA analog outputs or RS 485 Modbus output



Accessories

For VESDA Sensepoint XCL – Micro Bore (Modbus version) installations requiring additional relay outputs, users can opt to network detectors to the VESDA Sensepoint 301C Gas Controller. The Gas Controller provides additional relay outputs and enables centralised configuration and monitoring of a network of detectors. For additional information refer to the Technical Data Sheet.


FEATURES
  • Available Sensors:
    • Carbon Monoxide (CO): 0 – 1000ppm
    • Combustible (CAT): 0 – 100% LEL (Methane, Hydrogen, Propane, Ethanol, Butane, Octane, etc.)
    • Hydrogen (H2): 0 – 1000ppm
    • Carbon Dioxide (CO2): 0 – 5.0% v/v
    • Carbon Dioxide (CO2): 0 – 5000ppm
  • Factory calibrated detectors (CAT: Factory calibrated to CH4)
  • Integral alarm status LEDs
  • Bluetooth 4.0 (Bluetooth Low Energy)
  • Integrates with PLCs/HVAC/BMS/FACP
  • Configurable relays
  • 4-20 mA analog outputs or RS 485 Modbus output



Accessories

For VESDA Sensepoint XCL – Micro Bore (Modbus version) installations requiring additional relay outputs, users can opt to network detectors to the VESDA Sensepoint 301C Gas Controller. The Gas Controller provides additional relay outputs and enables centralised configuration and monitoring of a network of detectors. For additional information refer to the Technical Data Sheet.

APPLICATIONS
  • Residential
  • Commercial premises
  • Hospitals
  • Hotels
  • Car parks (underground / enclosed)
  • Laboratories
  • High tech manufacturing
  • Universities and schools
  • Chemical / Pharmaceutical
  • Indoor air quality monitoring
  • Battery rooms
  • Fuel storage areas
  • Confined spaces
  • Food & beverage
  • Refrigerated systems (leak detection)
  • Greenhouse
APPROVALS
  • Electrical Safety
    • Conforms to EN/UL/IEC61010-1
    • Certified to CSA-C22.2 No. 61010-1-12
  • CE - EMC
    • EN 50270
  • RADIO
    • RED, FCC, BT SIG

  • OTHERS
    • UL2075 (CO and CH4), AS 1668.2

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

ORDERING INFORMATION

VESDA Sensepoint XCL gas detectors come complete with the main detector unit (preinstalled with the sensor cartridge), two cable glands, calibration/flow cap, flexible adaptor tube and tube clips to connect to VEA microbore tubing. Two variants are available based on detector outputs (mA analog, Modbus RTU) on same line.
