VESDA VLC


DISCONTINUED

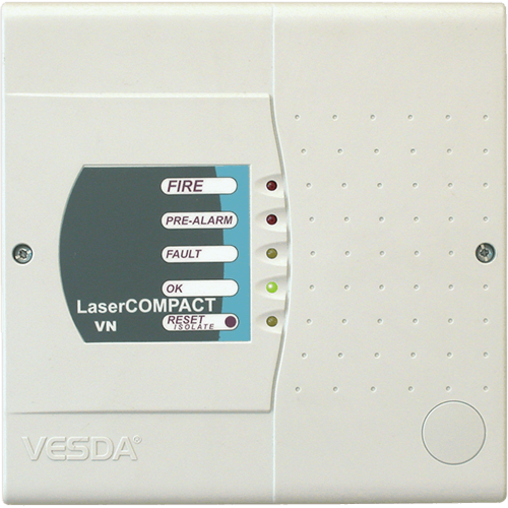

VESDA LaserCompact Aspirating Smoke Detector (VLC)

With the availability of the new VESDA-E VEP detector, the VESDA LaserPLUS (VLP) and VESDA LaserCOMPACT (VLC) ranges have been discontinued.

The VESDA VLP/VLC detectors paved the way for aspirating smoke detection to evolve from a niche technology to a mainstay of the fire prevention industry. The VESDA-E range of detectors sets a new benchmark in the life safety industry; providing superior detection performance; greater tolerance to nuisance alarms, lifetime stability in a wide range of applications, added flexibility, and a new range of connectivity options.

FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Suitable for Zone 2 applications (VLC-EX only)
  • Absolute smoke detection (coverage of 800 m2 or 8,000 sq. ft)
  • Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
  • Single pipe inlet
  • Five (5) status LEDs
  • Referencing
  • VESDAnet communication (VN)
  • Clean air barrier optics protection
  • Three (3) alarm levels
  • Three (3) programmable relays
  • Air flow monitoring
  • Optional remote display and relay capability
  • Simple mounting design
  • AutoLearn™
  • The VLC-EX models incorporate an IP54 rated stainless steel enclosure

FEATURES

  • Suitable for Zone 2 applications (VLC-EX only)
  • Absolute smoke detection (coverage of 800 m2 or 8,000 sq. ft)
  • Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
  • Single pipe inlet
  • Five (5) status LEDs
  • Referencing
  • VESDAnet communication (VN)
  • Clean air barrier optics protection
  • Three (3) alarm levels
  • Three (3) programmable relays
  • Air flow monitoring
  • Optional remote display and relay capability
  • Simple mounting design
  • AutoLearn™
  • The VLC-EX models incorporate an IP54 rated stainless steel enclosure

APPLICATIONS

The Xtralis VESDA VLC offers a simple, cost-effective solution for the protection of single and smaller environments such as:

  • Small archives
  • Production machinery
  • Ceiling voids,
  • Prison cells
  • Wet benches
  • Data storage cabinets
  • Critical process tools

CERTIFICATIONS

  • UL
  • ULC
  • FM
  • LPCB
  • VdS
  • CCC
  • ActivFire
  • NF
  • VNIIPO
  • CE
  • CSFM
  • EN 54-20
    Class A (30 holes / 0.05% obs/m)
    Class B (36 holes / 0.09% obs/m)
    Class C (40 holes / 0.165% obs/m)
  • FM Hazardous Locations: Suitable for Class 1, Division 2, Groups A, B, C and D
  • IECEx (VLC-EX only)
  • ATX (VLC-EX only)

If you would like a copy of the certificate, contact your local Sales Manager or visit the Document Library.

SERVICE & SUPPORT

VESDA relay interface is compatible with all major fire alarm panels.

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES




RELATED PRODUCTS


VESDA VLC Marine
VESDA LaserCompact Marine Aspirating Smoke Detector (VLC Marine)
VSW-202
ASPIRE Pipe Network Design Software
VSC
VSC Configuration & Commissioning Software
VSM4
VSM4 Configuration & Monitoring Software
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
