- Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
- Unique wing-lock arrangement permits installation from bottom side of ceiling which is ideal for fixed ceilings where access to the other side would be difficult or otherwise impossible
- Adjustable wing-lock height to accommodate different ceiling panel thicknesses
- Incorporates text compliant with codes and standards
- Designed for secure connection through push fit
- Accommodates several capillary tube sizes including 6 mm, 8 mm, 10 mm and ½” to suit various regional requirements
- Accommodates an optional Push-in Connect Adaptor for the Americas, ½” capillary tubing for increased robustness
- Flush mount design provides less obtrusive installation and improved aesthetics
- Standard 2 mm (5/64”) pilot sampling hole which can be drilled out up to 5 mm (13/64”) as per system design calculations
- Tapered sampling hole helps resist clogging
- Snap-fit fascia conceals sampling hole which is easily removable to permit cleaning if required
- RoHS/REACH compliant
FEATURES
- Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
- Unique wing-lock arrangement permits installation from bottom side of ceiling which is ideal for fixed ceilings where access to the other side would be difficult or otherwise impossible
- Adjustable wing-lock height to accommodate different ceiling panel thicknesses
- Incorporates text compliant with codes and standards
- Designed for secure connection through push fit
- Accommodates several capillary tube sizes including 6 mm, 8 mm, 10 mm and ½” to suit various regional requirements
- Accommodates an optional Push-in Connect Adaptor for the Americas, ½” capillary tubing for increased robustness
- Flush mount design provides less obtrusive installation and improved aesthetics
- Standard 2 mm (5/64”) pilot sampling hole which can be drilled out up to 5 mm (13/64”) as per system design calculations
- Tapered sampling hole helps resist clogging
- Snap-fit fascia conceals sampling hole which is easily removable to permit cleaning if required
- RoHS/REACH compliant
ORDERING INFO

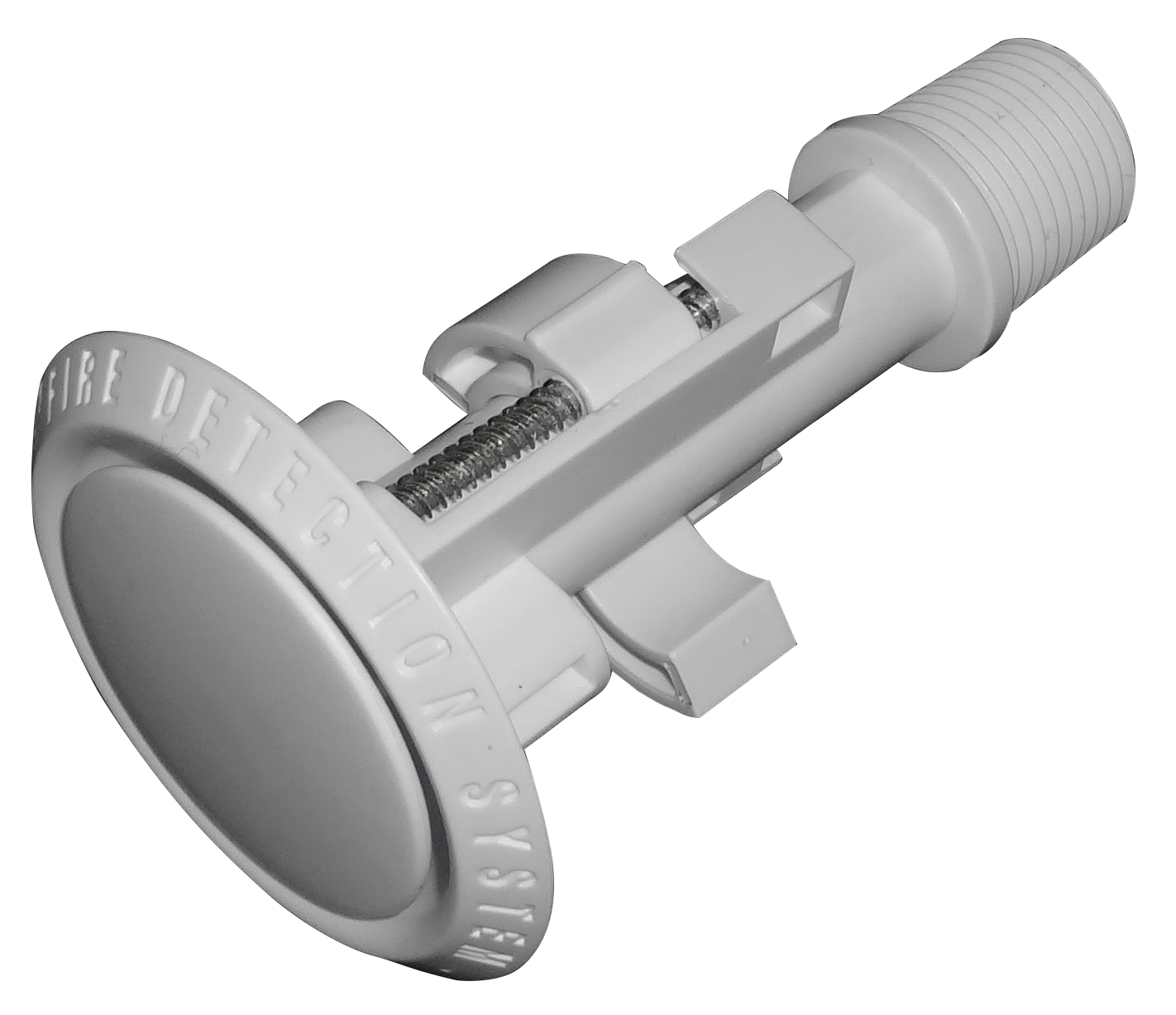

- Flush Mount Sampling Point - Part Number VSP-877
- Push-in Connect Adaptor Kit for ½” capillary tubing - Part Number VSP-878
