VESDA VLC Marine


DISCONTINUED

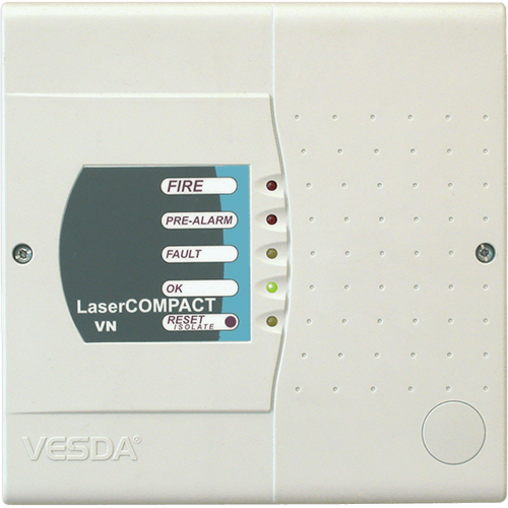

VESDA LaserCompact Marine Aspirating Smoke Detector (VLC Marine)

With the availability of the new VESDA-E VEP detector, the VESDA LaserPLUS (VLP) and VESDA LaserCOMPACT (VLC) ranges have been discontinued.

The VESDA VLP/VLC detectors paved the way for aspirating smoke detection to evolve from a niche technology to a mainstay of the fire prevention industry. The VESDA-E range of detectors sets a new benchmark in the life safety industry; providing superior detection performance; greater tolerance to nuisance alarms, lifetime stability in a wide range of applications, added flexibility, and a new range of connectivity options.

FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Absolute smoke detection (coverage of 800m2 or 8,000 sq. ft.)
  • Wide sensitivity range (0.005 – 20% obscuration/m and 0.0015 – 6% obscuration/ft)
  • Single pipe inlet
  • Five (5) status LEDs
  • Referencing
  • VESDAnet communication (VN)
  • Clean air barrier optics protection
  • Three (3) alarm levels
  • Three (3) programmable relays
  • Air flow monitoring
  • Optional remote display and relay capability
  • Simple mounting design
  • AutoLearn™

FEATURES

  • Absolute smoke detection (coverage of 800m2 or 8,000 sq. ft.)
  • Wide sensitivity range (0.005 – 20% obscuration/m and 0.0015 – 6% obscuration/ft)
  • Single pipe inlet
  • Five (5) status LEDs
  • Referencing
  • VESDAnet communication (VN)
  • Clean air barrier optics protection
  • Three (3) alarm levels
  • Three (3) programmable relays
  • Air flow monitoring
  • Optional remote display and relay capability
  • Simple mounting design
  • AutoLearn™

APPLICATIONS

The Xtralis VESDA Marine VLC offers a simple, cost-effective solution for the protection of yachting and shipping applications such as:

  • On-board control rooms and bridges
  • Sleeping accommodations
  • Control and EDP areas
  • Inaccessible spaces
  • State rooms and luxury areas where clean aesthetics are paramount

CERTIFICATIONS

  • Bureau Veritas
    Approved for use in Bridge and Deck zones as defined in the BV Rules for the Classification of Steel Ships.
  • Lloyd’s Register
    Applications defined as Marine, offshore and industrial use in environmental categories ENV1, ENV2 and ENV3 as described in Lloyd’s Register Test Specification No. 1:2002. The specified standard to which the type approval relates is CEA 4022:1999.
  • FM Hazardous Locations
    Suitable for Class 1, Division 2, Groups A, B, C and D

If you would like a copy of the certificate, contact your local Sales Manager or visit the Document Library.

SERVICE & SUPPORT

VESDA relay interface is compatible with all major fire alarm panels.

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES




RELATED PRODUCTS


VESDA VLC
VESDA LaserCompact Aspirating Smoke Detector (VLC)
VSW-202
ASPIRE Pipe Network Design Software
VSC
VSC Configuration & Commissioning Software
VSM4
VSM4 Configuration & Monitoring Software
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
