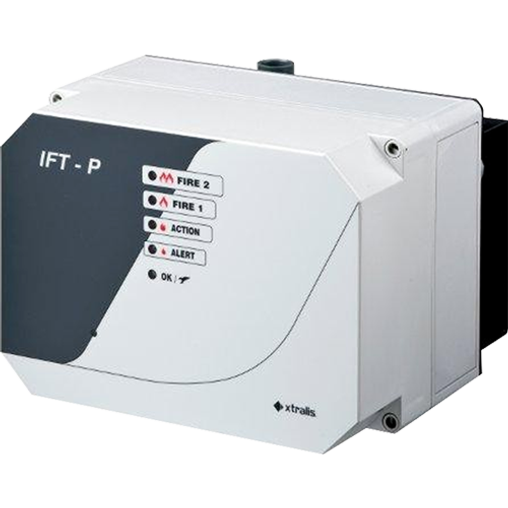

ICAM IFT-P

DISCONTINUED

ICAM IFT-P ASD

The ICAM IFT-P is an aspirating smoke detection system with an alarm sensitivity range from 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft). This detector is classified as a Very Early Warning Smoke Detector that can reliably detect fire at an early stage, and low to high concentrations of smoke over an area of 2,000 m2 (21,500 sq. ft.). The detector is configurable for a variety of environments.

Model No. IFT-P
FEATURES
APPLICATIONS
CERTIFICATIONS
SERRVICE & SUPPORT
  • Single zone
  • Large bore dual pipe air sampling
  • 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 2 x 100 m (2 x 328 ft) sampling pipe
  • Enhanced performance aspirator
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • Up to 16 additional relay outputs available
  • Optional 4 to 20 mA analog outputs
  • Area coverage of up to 2,000 m2 (21,500 sq. ft.)

FEATURES
  • Single zone
  • Large bore dual pipe air sampling
  • 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 2 x 100 m (2 x 328 ft) sampling pipe
  • Enhanced performance aspirator
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • Up to 16 additional relay outputs available
  • Optional 4 to 20 mA analog outputs
  • Area coverage of up to 2,000 m2 (21,500 sq. ft.)
APPLICATIONS
  • Telecom and IT facilities
  • Heavy industrial environments such as chemical plants, factories, warehouses and mining facilities
  • Tunnel applications up to 200 meter coverage (100 meter pipe in each direction)
CERTIFICATIONS
  • FM
  • UL
  • VdS
  • CFE
  • CE-EMC
  • LVD
  • CPR
  • CSFM
  • EN54-20
  • KFI
  • NF

If you would like a copy of the certificate, contact your local Sales Manager or visit the Document Library.

DoP available for download here

SERRVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

Accessories

RESOURCES

Download ICAM IFT-P Data Sheet ICAM IFT-P Data Sheet
Download ICAM IFT-P Product Guide ICAM IFT-P Product Guide
Download ICAM IFT-P Engineering Specifications ICAM IFT-P Engineering Specifications
Download Introduction to the Xtralis ICAM System Design Manual Introduction to the Xtralis ICAM System Design Manual
Download ICAM Product Line Brochure ICAM Product Line Brochure
Download ICAM Cold Stores Application Brochure ICAM Cold Stores Application Brochure
Download ICAM Correctional Facilities Application Brochure ICAM Correctional Facilities Application Brochure
Download ICAM Warehouse/Logistics Application Brochure ICAM Warehouse/Logistics Application Brochure
Download ICAM Wind Turbines Application Brochure ICAM Wind Turbines Application Brochure
Download ICAM Model Comparison Chart ICAM Model Comparison Chart


RELATED PRODUCTS

VSC
VSC Configuration & Commissioning Software
VSM4
VSM4 Configuration & Monitoring Software
ICAM ASPIRE Pipe Network Design Software
ICAM ASPIRE Pipe Network Design Software
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
