ICAM IFT


DISCONTINUED

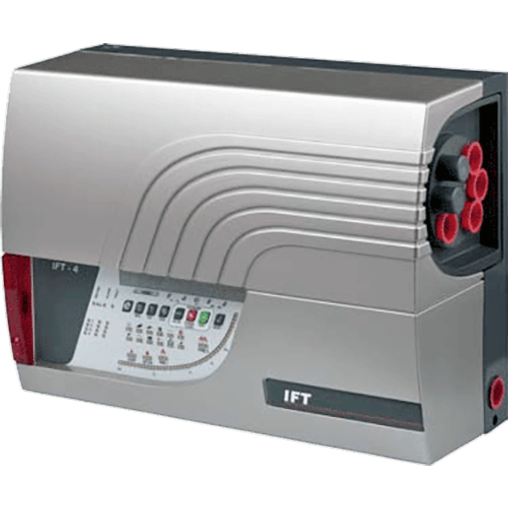

ICAM IFT-1, IFT-4 and IFT-6

The ICAM IFT-1, ICAM IFT-4 and IFT-6 by Xtralis are aspirating smoke detection systems with an alarm sensitivity range from 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft). These detectors are classified as Very Early Warning Smoke Detectors that can reliably detect fire at an early stage, and low to high concentrations of smoke over an area of 2,000 m2 (21,500 sq. ft.). The detectors are configurable for a variety of environments. ICAM IFT-4 and IFT-6 addressability provides more detail into fire location, enabling faster response.

ICAM IFT-1 FEATURES & CERTIFICATIONS
ICAM IFT-4 & IFT-6 FEATURES & CERTIFICATIONS

Features

  • Single zone
  • Large bore 4 pipe air sampling
  • 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 4 x 100 m (4 x 328 ft) sampling pipe
  • Enhanced performance aspirator
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • Up to 16 additional relay outputs available
  • Optional 4 to 20 mA analog outputs
  • Area coverage of up to 2,000 m2 (21,500 sq. ft.)

Certifications

  • FM
  • UL
  • VdS
  • CFE
  • CE-EMC
  • LVD
  • CPR
  • CSFM
  • EN54-20
  • KFI
  • NF

ICAM IFT-1 FEATURES & CERTIFICATIONS

Features

  • Single zone
  • Large bore 4 pipe air sampling
  • 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 4 x 100 m (4 x 328 ft) sampling pipe
  • Enhanced performance aspirator
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • Up to 16 additional relay outputs available
  • Optional 4 to 20 mA analog outputs
  • Area coverage of up to 2,000 m2 (21,500 sq. ft.)

Certifications

  • FM
  • UL
  • VdS
  • CFE
  • CE-EMC
  • LVD
  • CPR
  • CSFM
  • EN54-20
  • KFI
  • NF

ICAM IFT-4 & IFT-6 FEATURES & CERTIFICATIONS

Features

  • 4 and 6 zones
  • Large bore 4- and 6-pipe air sampling
  • 0.001% to 20% obscuration/m (0.0003% to 6.10% obscuration/ft)
  • 4 Alarms - Alert, Action, Fire 1, Fire 2
  • 4 x 100 m (4 x 328 ft) and 6 x 100 m (6 x 328 ft.) sampling pipe
  • Enhanced performance aspirator
  • Ethernet TCP/IP
  • RS232 and RS485 Modbus
  • Up to 16 additional relay outputs available
  • Optional 4 to 20 mA analog outputs
  • Area coverage of up to 2000 m2 (21,500 sq. ft.)

Certifications

  • FM
  • UL
  • VdS
  • CFE
  • CE-EMC
  • CPR
  • CSFM
  • EN54-20
  • KFI
  • NF

RESOURCES




Product information is subject to change without notice. Product images may include options or accessories not included with the base model.



OFFER

Schedule a VESDA Lunch & Learn.

A VESDA Lunch and Learn presentation covers the major design aspects of a revolutionary addressable aspirating system (including relevant codes and standards), Advanced Detection products and/or their application in specific markets and case studies. We will provide tea/lunch with a technical exposé on how our very early warning detection products would provide cost savings and the earliest detection for each of your vertical markets.
