VESDA VLS


DISCONTINUED

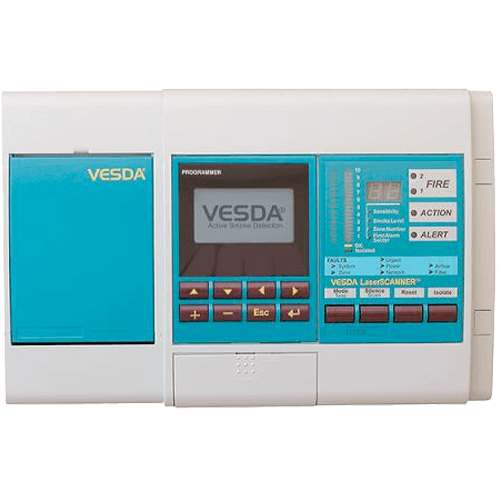

VESDA VLS Aspirating Smoke Detector (VLS)

With the arrival of the new VESDA-E VES detector, the VESDA LaserSCANNER (VLS) has been discontinued immediately in all regions except Europe. VLS will be available in Europe only until early 2020. Please check the End of Life Notices below for Last Time Buy (LTB) & Ship Dates for specifics by region.

The VESDA VLS has provided unique sector addressability since 1998 to deliver lower cost of Very Early Warning for up to four (4) areas (sectors) within a fire zone. The new VESDA-E VES is backward compatible with VLS and provides a seamless conversion, while providing numerous feature upgrades.


FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Individual pipe identification
  • Adaptive Scan Threshold
  • Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
  • Laser-based smoke detection covering 2,000 m2 or 20,000 sq. ft
  • VESDAnet™ communication
  • 4 alarm levels per sector
  • High efficiency aspirator
  • Clean air barrier optics protection
  • Easy to replace air filter
  • 7 or 12 programmable relays option
  • AutoLearn™
  • Event log
  • Recessed mounting

FEATURES

  • Individual pipe identification
  • Adaptive Scan Threshold
  • Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
  • Laser-based smoke detection covering 2,000 m2 or 20,000 sq. ft
  • VESDAnet™ communication
  • 4 alarm levels per sector
  • High efficiency aspirator
  • Clean air barrier optics protection
  • Easy to replace air filter
  • 7 or 12 programmable relays option
  • AutoLearn™
  • Event log
  • Recessed mounting

APPLICATIONS

The Xtralis VESDA VLS is ideal for protecting several rooms or separate areas within a building, such as those within:

  • Casinos - small gaming rooms
  • Clean rooms - small, adjacent clean rooms
  • Computer rooms - equipment cabinets
  • Control rooms - equipment cabinets
  • Dormitories/prisons - up to 4 rooms or cells
  • Historical buildings - separate rooms
  • Hospitals - separate operating theaters or laboratories
  • Hotels - guest rooms
  • Laboratories - separate fume hoods or rooms
  • Libraries/archival storage - storage rooms
  • Museums/art galleries - small display rooms
  • Offices - multiple offices
  • Telecommunication facilities - equipment cabinets
  • Cinemas - several smaller theatre rooms

CERTIFICATIONS

  • UL
  • ULC
  • FM
  • LPCB
  • VdS
  • CCC
  • ActivFire
  • NF
  • VNIIPO
  • CE
  • CSFM
  • EN 54-20
    Class A (40 holes / 0.08% obs/m)
    Class B (40 holes / 0.23% obs/m)
    Class C (60 holes / 0.65% obs/m)

If you would like a copy of the certificate, contact your local Sales Manager or visit the Document Library.

SERVICE & SUPPORT

VESDA relay interface is compatible with all major fire alarm panels.

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.
