ASPIRE Pipe Network Design Software

VESDA ASPIRE Pipe Network Design Software is a Windows®-based application that aids the specification and design of pipe networks for VESDA aspirating smoke detectors.

Model No. VSW-202

The performance of an aspirating smoke detection system is dependent on the design of the pipe network used to transport air back to the smoke detector. VESDA ASPIRE is a Windows®-based application that aids the specification and design of pipe networks for VESDA air sampling smoke detectors. It provides the designer with tools to speed the design process and ensure optimum network performance and installation quality. ASPIRE also makes implementation of the design easy. With automatic generation of lists of all the components required for the project and an Installation Data Pack, the installer will have all the information they need at their fingertips.


FEATURES
CERTIFICATIONS
SERVICE & SUPPORT
DOWNLOAD SOFTWARE
  • Ensures optimum design of VESDA aspirating smoke detection pipe networks, including VESDA ECO gas detection and environmental monitoring
  • Accurately models pipe network designs to environmental performance criteria
  • User-friendly interface that allows easy manipulation and handling of design in terms of adding branches, drop pipes, bends, etc
  • Live display of total pipe length and number of sampling holes. Highlights exceeded limits
  • Speeds the design process by automating adjustment of hole sizes
  • Unique building constraints can be easily accommodated
  • Allows different detector performance requirements within one building

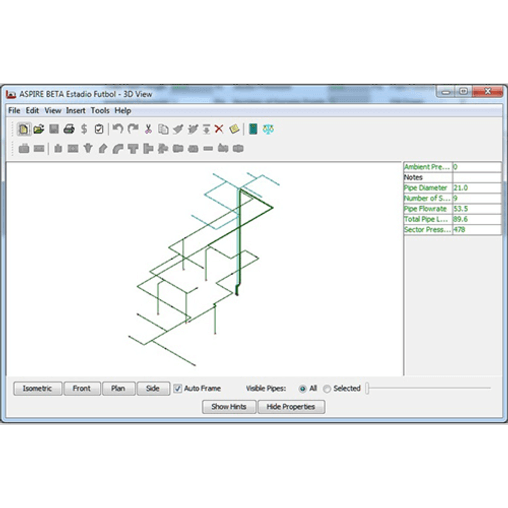

  • Interactive 3D view to aid design
  • Multilevel “undo” and “redo” along with autosave to aid the designer
  • Improved usability and presentation including standard keyboard shortcuts
  • Custom design elements can be documented to guide the installation team
  • Inclusion of special fittings (valves, water traps, socket unions and refrigerated sampling points) to achieve an accurate BOM
  • Exhaust included in flow calculations
  • Professional reports and materials lists can be generated to add to client submissions
  • Supports both metric and imperial measurement systems
  • Compatible with other Windows®– based applications
  • Set multiple detector alarm thresholds within a detector
  • Sampling Point Sensitivity tab to confirm EN 54-20* compliance
  • Introduction of safety factor when setting the detector’s sensitivity to achieve an EN54-20 class

FEATURES

  • Ensures optimum design of VESDA aspirating smoke detection pipe networks, including VESDA ECO gas detection and environmental monitoring
  • Accurately models pipe network designs to environmental performance criteria
  • User-friendly interface that allows easy manipulation and handling of design in terms of adding branches, drop pipes, bends, etc
  • Live display of total pipe length and number of sampling holes. Highlights exceeded limits
  • Speeds the design process by automating adjustment of hole sizes
  • Unique building constraints can be easily accommodated
  • Allows different detector performance requirements within one building
  • Interactive 3D view to aid design
  • Multilevel “undo” and “redo” along with autosave to aid the designer
  • Improved usability and presentation including standard keyboard shortcuts
  • Custom design elements can be documented to guide the installation team
  • Inclusion of special fittings (valves, water traps, socket unions and refrigerated sampling points) to achieve an accurate BOM
  • Exhaust included in flow calculations
  • Professional reports and materials lists can be generated to add to client submissions
  • Supports both metric and imperial measurement systems
  • Compatible with other Windows®– based applications
  • Set multiple detector alarm thresholds within a detector
  • Sampling Point Sensitivity tab to confirm EN 54-20* compliance
  • Introduction of safety factor when setting the detector’s sensitivity to achieve an EN54-20 class

CERTIFICATIONS

European Standard 54 – Fire Detection and Fire Alarm Systems – Part 20: Aspirating Smoke Detectors

If you would like a copy of the certificate, contact your local Sales Manager or visit the Xtralis Partner Extranet.

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

DOWNLOAD SOFTWARE

Download Software

Xtralis ASPIRE software is approximately 70 MB in size. The time it takes to download the ASPIRE software will vary depending on the speed of your Internet connection. To download the ASPIRE software, please visit the Document Library (DOCUMENTS BY CATEGORY > Software Downloads), or click one of the links below.
