OSID-R

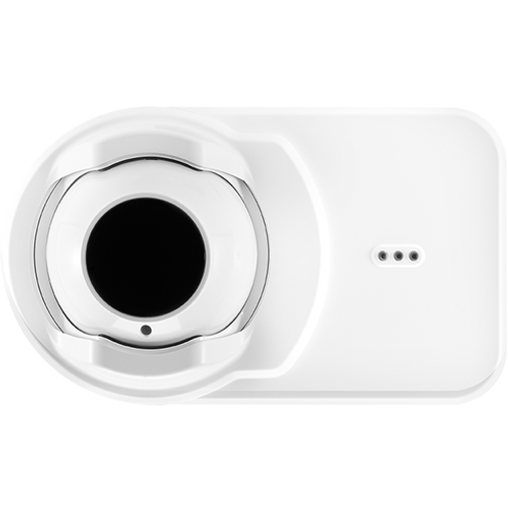

OSID-R (Reflective) Smoke Beam Detector

OSID-R is the latest addition to the OSID open area smoke detection range utilizing the latest CMOS imaging technology to deliver rapid and trouble free detection with a lower total cost of ownership; ideal for protecting buildings with large open spaces. The CMOS technology allows the detector to find and lock onto a standard reflector, automatically set the detector sensitivity, track the reflector, resulting in the eliminattion of nuisance alarms due to building movement. The OSID-R detector is a combined transmitter/receiver unit that can be directly connected to a conventional FACP or to an addressable/intelligent FACP using zone modules or IO units.

Model Nos. OSI-R, OSI-RE
Play Video OSID-R Introduction Video
Download Xtralis OSID-R (UL Version) Data Sheet (English) Xtralis OSID-R (UL Version) Data Sheet (English)
Download Xtralis OSI-RE (EN Version) Data Sheet (English) Xtralis OSI-RE (EN Version) Data Sheet (English)
FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Combined transmitter and receiver unit, range 5-100 m (16-328 ft)
  • Highly resistant to reflections
  • Receiver consists of a CMOS imaging CCD
  • Wide 12° field of view
  • Intuitive beam alignment indicated by directional arrows
  • Single IR wavelength
  • Highly resistant to building movement; tolerates +/- 1° movement
  • Resistant to strong light sources up to +/-10°; does not alarm when saturated by sun
  • Resistant to sudden solid intruding objects
  • Automatic sensitivity threshold level setting
  • 50° horizontal and 20° vertical beam alignment
  • Built-in heater
  • Electronic simulated smoke test from ground level
  • Standby, fault and alarm LED indicators visible from the front and bottom
  • Automatic drift compensation
  • Paintable cover
  • Removable plug-in terminal blocks
  • Optional heater kit available for the reflector

FEATURES
  • Combined transmitter and receiver unit, range 5-100 m (16-328 ft)
  • Highly resistant to reflections
  • Receiver consists of a CMOS imaging CCD
  • Wide 12° field of view
  • Intuitive beam alignment indicated by directional arrows
  • Single IR wavelength
  • Highly resistant to building movement; tolerates +/- 1° movement
  • Resistant to strong light sources up to +/-10°; does not alarm when saturated by sun
  • Resistant to sudden solid intruding objects
  • Automatic sensitivity threshold level setting
  • 50° horizontal and 20° vertical beam alignment
  • Built-in heater
  • Electronic simulated smoke test from ground level
  • Standby, fault and alarm LED indicators visible from the front and bottom
  • Automatic drift compensation
  • Paintable cover
  • Removable plug-in terminal blocks
  • Optional heater kit available for the reflector
APPLICATIONS

Large, open spaces where high-sensitivity detection is not the priority but reliable, easy detection is essential, including:

  • Airports
  • Train stations
  • Shopping centers
  • Stadiums
  • Hotels, convention centers and office buildings/complexes
  • Entertainment venues
  • Warehouses and production floors
CERTIFICATIONS
  • UL
  • ULC
  • FM
  • CSFM
  • CE – CPR & EMC
  • NF-SSI (AFNOR)
  • BOSEC
  • ActivFire

Pending:

  • VdS
  • VNIIPO

If you would like a copy of the certificate, contact your local Sales Manager or visit the Document Library.

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.
