FTD

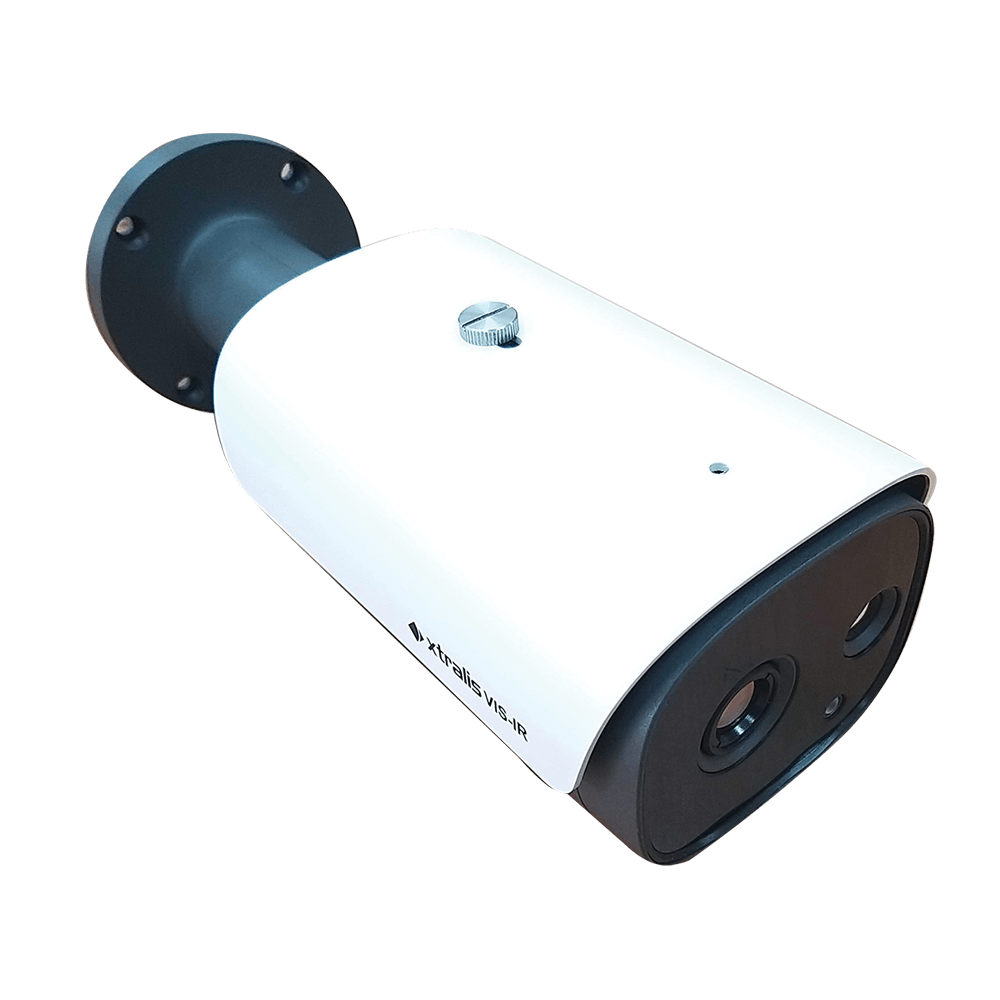

Xtralis VIS-IR™ Failsafe Bi-Spectral Thermography Detector

(Available in UK, Italy, Spain and France only)

The Failsafe Thermography Detector (FTD) is a bi-spectral (IR & Visual) smart edge device that has been specifically designed for early warning heat-detection. It provides fire detection solutions where traditional smoke/fire detectors cannot cope with high smoke and dust conditions as part of normal operating conditions. The detector continuously checks for various fault conditions and signals these via an onboard failsafe relay. The FTD range detectors connect very fast and are user-friendly to any industry standard FACP in the same way traditional smoke/fire detectors do. The bi-spectral camera allows visual camera as needed by switching from IR mode to Visual mode.

Model Nos. FTD-2216-S, FTD-4231-S, FTD-8865-S
Download Xtralis VIS-IR Thermography Detector Technical Data Sheet Xtralis VIS-IR Thermography Detector Technical Data Sheet
FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Bi-spectral – IR & visual
  • On-board pre- alarm, alarm and fail-safe fault relay outputs
  • Sensor resolution 384 x 288 pixels
  • Area size detected selectable by 1x1/ 3x3/ 5x5
  • Detection temperature range -5°C to 450°C
  • Fixed temperature and Rate of Rise Pre-Alarms and Alarms
  • 3 different lenses/FOV
  • 1 input (Reset)
  • Tri-color front LED for status signaling
  • Remote LED output
  • Simple and user-friendly connection
  • IP66
  • Operation on 24 VDC
  • Pluggable connection and terminals
  • Vehicle discrimination algorithm
  • Feeds: fusion, IR and visual
  • Camera cover fault detection

FEATURES
  • Bi-spectral – IR & visual
  • On-board pre- alarm, alarm and fail-safe fault relay outputs
  • Sensor resolution 384 x 288 pixels
  • Area size detected selectable by 1x1/ 3x3/ 5x5
  • Detection temperature range -5°C to 450°C
  • Fixed temperature and Rate of Rise Pre-Alarms and Alarms
  • 3 different lenses/FOV
  • 1 input (Reset)
  • Tri-color front LED for status signaling
  • Remote LED output
  • Simple and user-friendly connection
  • IP66
  • Operation on 24 VDC
  • Pluggable connection and terminals
  • Vehicle discrimination algorithm
  • Feeds: fusion, IR and visual
  • Camera cover fault detection
APPLICATIONS
  • Waste management and recycling sites
  • Food and drink processing plants
  • Industrial sites
  • Transportation and other tunnels
CERTIFICATIONS
  • CNPP
SERVICE & SUPPORT

VIS-IR Software Management (ViSM) Setup V0.10.0.0

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Download Xtralis VIS-IR Thermography Detector Product Bulletin Xtralis VIS-IR Thermography Detector Product Bulletin
Download Xtralis VIS-IR Thermography Detector Technical Data Sheet Xtralis VIS-IR Thermography Detector Technical Data Sheet
Download Xtralis VIS-IR Thermography Detector Product Guide Xtralis VIS-IR Thermography Detector Product Guide
Download Xtralis VIS-IR Thermography Detector Installation Sheet Xtralis VIS-IR Thermography Detector Installation Sheet
Download Xtralis VIS-IR Thermography Detector Engineering Specifications Xtralis VIS-IR Thermography Detector Engineering Specifications
Download Xtralis VIS-IR Thermography Detector Black Body Application Note Xtralis VIS-IR Thermography Detector Black Body Application Note
Download Xtralis VIS-IR Theoretical Spot Size Ratio Calculator Xtralis VIS-IR Theoretical Spot Size Ratio Calculator
Download Xtralis VIS-IR Theoretical Spot Size Calculator User Guide Xtralis VIS-IR Theoretical Spot Size Calculator User Guide
Download Xtralis VIS-IR Thermography Detector FAQ Xtralis VIS-IR Thermography Detector FAQ
Download Xtralis VIS-IR Thermography Detector Product Brochure Xtralis VIS-IR Thermography Detector Product Brochure
Download ViSM Setup 0.10.0.0 ViSM Setup 0.10.0.0
Download Xtralis VIS‐IR Thermography Detector Declaration of Conformity Xtralis VIS‐IR Thermography Detector Declaration of Conformity
Download CNPP Certificate (102.25.221) for Xtralis VIS-IR Thermography Detector CNPP Certificate (102.25.221) for Xtralis VIS-IR Thermography Detector



VIDEOS

Xtralis VIS-IR™ Failsafe Bi-Spectral Thermography Detector
Play Video: Xtralis VIS-IR™ Failsafe Bi-Spectral Thermography Detector
Xtralis VIS-IR™ Failsafe Bi-Spectral Thermography Detector
