Li-ion Tamer Sensor Multi Output Solution

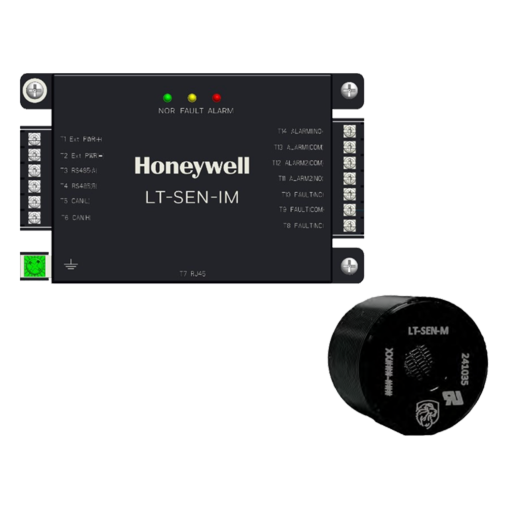

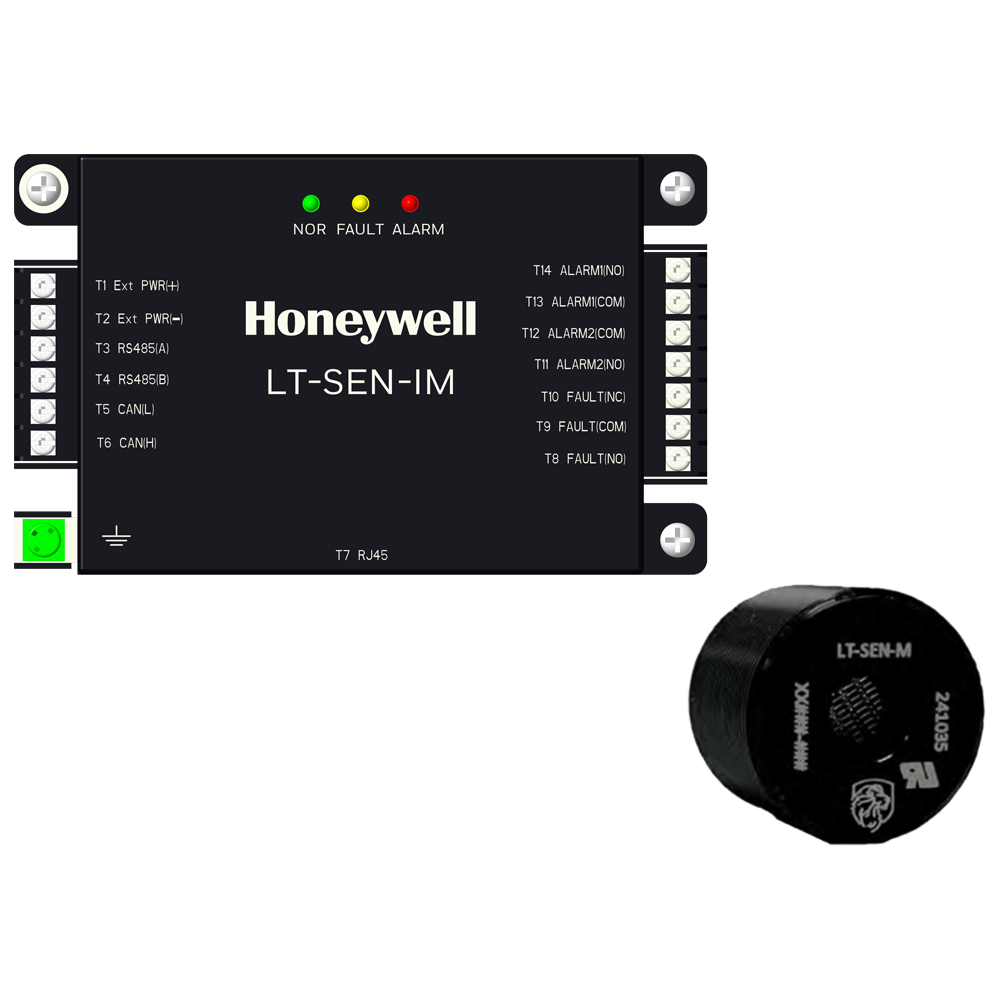

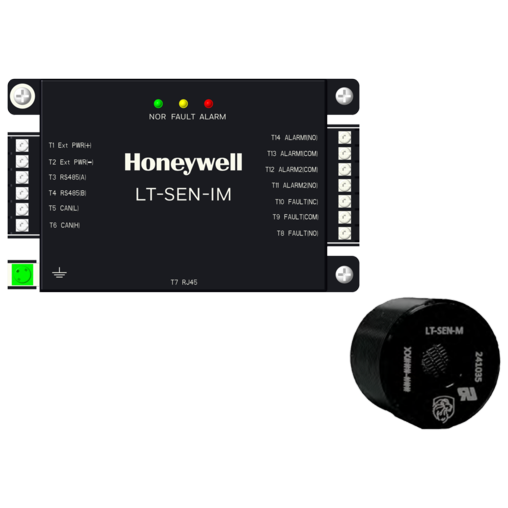

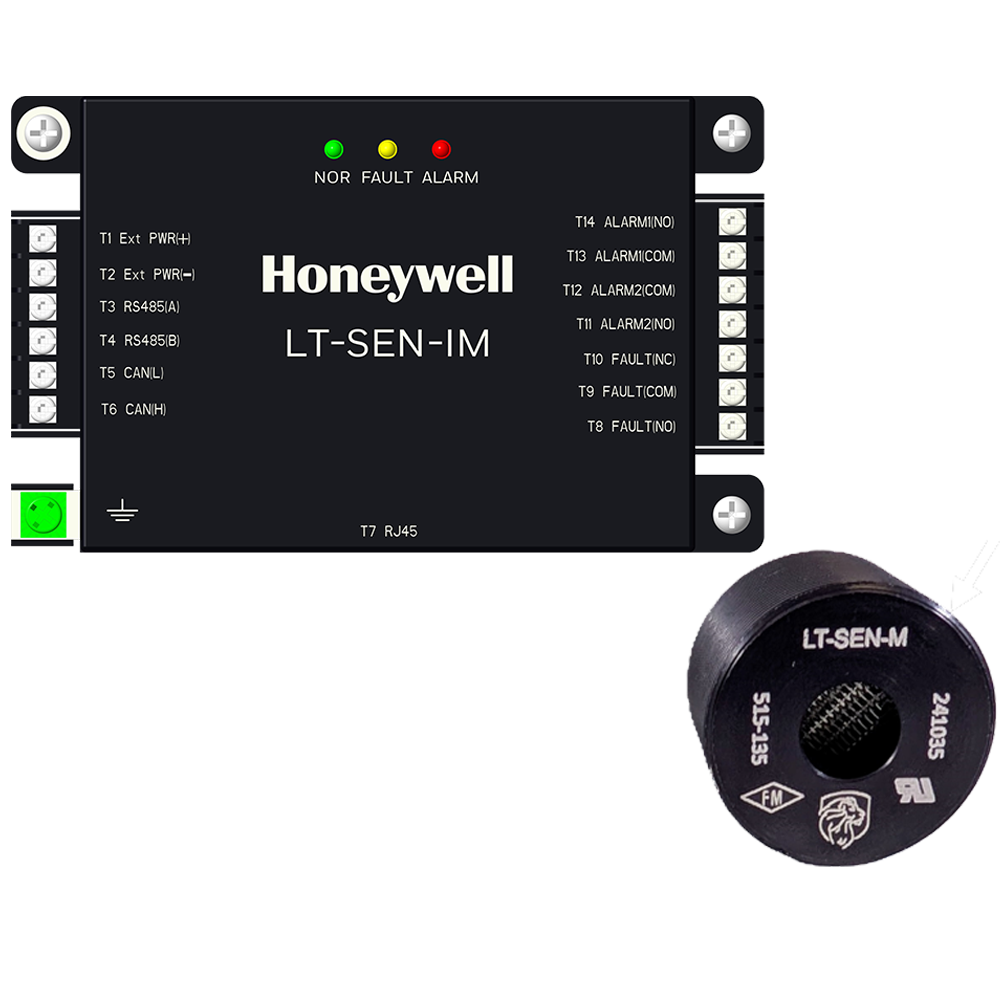

Li-ion Tamer Sensor Multi Output Solution (MOS)

The Li-ion Tamer Sensor MOS is a device that detects hydrogen and carbon monoxide gases, which are generated during thermal runaway of lithium-ion batteries. The detection of these gases allows proper management of flammable gas accumulation to avoid explosive conditions. It is also capable of detecting the initial venting of battery electrolyte solvent vapours (off-gassing phase) that occurs early in the failure mode of lithium-ion batteries. The early detection of such events allows proper mitigation steps to be taken to avoid a catastrophic thermal runaway failure.

Download Li-ion Tamer Sensor MOS Data Sheet Li-ion Tamer Sensor MOS Data Sheet
FEATURES
APPLICATIONS
CERTIFICATIONS
SERVICE & SUPPORT
  • Early warning of lithium-ion battery failures
  • Enable thermal runaway prevention with proper mitigation actions
  • Single cell failure detection without electrical or mechanical contact of cells
  • Extended product lifetime
  • Calibration-free product (only requires bump test)
  • Highly reliable output signal
  • Low power consumption
  • Cost Effective solution for modular Battery Energy Storage Systems (BESS)
  • Compatible with all lithium-ion battery form factors and chemistries
  • Easy installation
  • Independent and redundant perspective on battery health
  • Reduction/removal of false positive signals
  • Support 2 alarm relay outputs and 1 fault relay output
  • Configurable communication protocols including Relay outputs and Modbus/Canbus selection communication

FEATURES
  • Early warning of lithium-ion battery failures
  • Enable thermal runaway prevention with proper mitigation actions
  • Single cell failure detection without electrical or mechanical contact of cells
  • Extended product lifetime
  • Calibration-free product (only requires bump test)
  • Highly reliable output signal
  • Low power consumption
  • Cost Effective solution for modular Battery Energy Storage Systems (BESS)
  • Compatible with all lithium-ion battery form factors and chemistries
  • Easy installation
  • Independent and redundant perspective on battery health
  • Reduction/removal of false positive signals
  • Support 2 alarm relay outputs and 1 fault relay output
  • Configurable communication protocols including Relay outputs and Modbus/Canbus selection communication
APPLICATIONS
  • Stationary Battery Energy Storage
    • Small footprint BESS installations (modular cubes, single battery racks, etc.)
  • Data Centers
    • Battery UPS
  • Manufacturing
    • Assembly lines
    • Battery formation process
    • Cell aging and EOL testing
    • Module or pack assembly
  • Automotive
    • Vehicle test facilities
  • Laboratory Safety
    • Environmental chambers
    • Battery abuse testing
  • Shipping and Storage
    • Post-manufacturing storage
    • Battery-powered equipment
CERTIFICATIONS
  • Certification of Off-Gas Sensor:
    • UL 2075 and ULC 588 Recognized for Hydrogen (H2) detection
    • UL 2075 and ULC 588 Recognized for Carbon Monoxide (CO) detection*
    • UL 2075 and ULC 588 Recognized for Battery Electrolyte Solvent Vapour detection
      Includes Diethyl Carbonate (DEC), Dimethyl Carbonate (DMC), and Ethyl Methyl Carbonate (EMC)
    • FM 6540 Approved for Battery Electrolyte Solvent Vapours (ex. DEC, DMC, EMC)**
    • ETL listed to UL 61010 and CSA 22.2 NO. 61010 for product safety
    • EN 61326 for EU Directive (2014/30/EU)
    • RoHS 3 (EU 2015/863)
    • CE
    • UKCA
    • FCC
    • CSFM (according to UL 2075 for H2)
  • Certification of Interface Module:
    • Certification of fire alarm system module UL864 10th
    • ULC S527
    • FM 6540
    • Safety UL61010-1
    • RoHS EN50581-2002
    • EMI EN55011-2010
    • EMC EN61326-1-2021

* Available on selected models.
** Model (LT-SEN-M) only.

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications and other technical support documents.

GET IN TOUCH!

Our specialists are happy to answer your questions on Li-ion Tamer Sensor MOS and advise.

EMEA and D-A-CH

Andrew Scarrott

AMERICAS

Paco Ayala

APAC

ASEAN

Pacific

China



RESOURCES (Documentation)

Download Li-ion Tamer Sensor MOS Product Bulletin Li-ion Tamer Sensor MOS Product Bulletin
Download Li-ion Tamer Sensor MOS Data Sheet Li-ion Tamer Sensor MOS Data Sheet
Download Li-ion Tamer Sensor MOS User Manual Li-ion Tamer Sensor MOS User Manual
Download Li-ion Tamer GEN 2+ Off-Gas Monitor User Manual, English & French Canada Li-ion Tamer GEN 2+ Off-Gas Monitor User Manual, English & French Canada
Download Li-ion Tamer Senor MOS Engineering Specifications Li-ion Tamer Senor MOS Engineering Specifications
Download Li-ion Tamer Sensor MOS Cable Fabrication Application Note Li-ion Tamer Sensor MOS Cable Fabrication Application Note
Download Li-ion Tamer Senor MOS FAQs Li-ion Tamer Senor MOS FAQs
Download Li-ion Tamer Sensor MOS Product Brochure Li-ion Tamer Sensor MOS Product Brochure
Download Li-ion Tamer Sensor MOS Application in BESS Container Case Study Li-ion Tamer Sensor MOS Application in BESS Container Case Study
Download Li-ion Tamer Sensor MOS Application in BESS Modular Cubes Case Study Li-ion Tamer Sensor MOS Application in BESS Modular Cubes Case Study
Download Li-ion Tamer Sensor MOS Application in Telecom Data Center UPS Room Case Study Li-ion Tamer Sensor MOS Application in Telecom Data Center UPS Room Case Study
Download FM Approval Certificate for Li-ion Tamer Gen2+ Sensor (LT-SEN-M) FM Approval Certificate for Li-ion Tamer Gen2+ Sensor (LT-SEN-M)
Download FM Certificate of Conformity for Li-ion Tamer Interface Module FM Certificate of Conformity for Li-ion Tamer Interface Module
Download UL 864 and ULC S527 Certificate of Compliance for Li-ion Tamer Interface Module UL 864 and ULC S527 Certificate of Compliance for Li-ion Tamer Interface Module
Download CE Test Verification of Conformity for Li-ion Tamer Interface Module CE Test Verification of Conformity for Li-ion Tamer Interface Module
Download UL 2075 and ULC S588 Certificate of Compliance for GEN2+ Sensor UL 2075 and ULC S588 Certificate of Compliance for GEN2+ Sensor
Download CSFM Certificate for Li-ion Tamer Gen2+ Sensor (LT-SEN-M) CSFM Certificate for Li-ion Tamer Gen2+ Sensor (LT-SEN-M)
Download ETL Authorization to Mark for Li-ion Tamer GEN2+ Sensor ETL Authorization to Mark for Li-ion Tamer GEN2+ Sensor
Download Li-ion Tamer GEN 2+ Sensor EU & UK Declaration of Conformity Li-ion Tamer GEN 2+ Sensor EU & UK Declaration of Conformity


RESOURCES (Software)

Download Li-ion Tamer Interface Module Config Software - October 2025 Li-ion Tamer Interface Module Config Software - October 2025
Download Li-ion Tamer Interface Module Config Software - March 2025 Li-ion Tamer Interface Module Config Software - March 2025
Download Li-ion Tamer Interface Module Config Software - October 2024 Li-ion Tamer Interface Module Config Software - October 2024


Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
