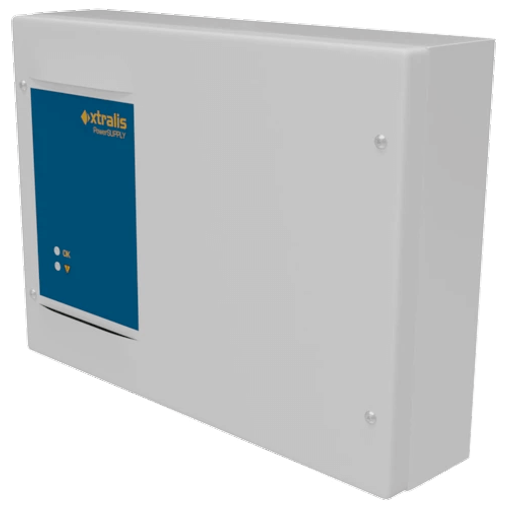

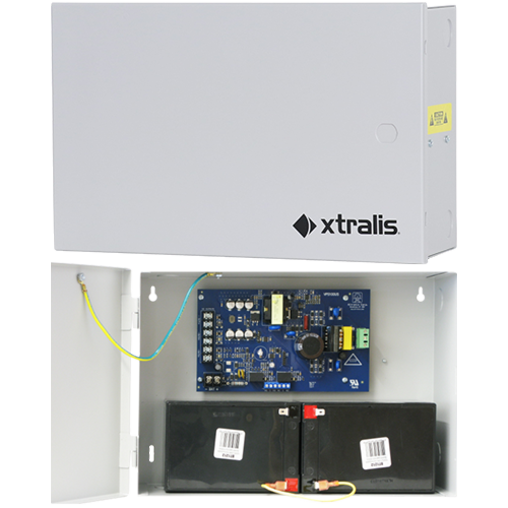

VESDA Power Supply

Name: VESDA Power Supply
Brand: Xtralis

The VESDA Power Supply is capable of providing operating power, including battery backup, for the entire line of VESDA by Xtralis Aspirating Smoke Detectors. The VESDA Power Supply has been designed to power a single unit to multiple units depending on application needs. It provides 24 volt operating power to the VESDA system as well as a battery charger function that supervises and maintains the standby batteries.

Model No. VESDA Power Supplies are available in models for u

FEATURES

CERTIFICATIONS

SERVICE & SUPPORT

Models VPS-100US and VPS300US:

120 VAC (+10% / -15%); 60Hz; 1.4 amp max.
1.5 amp continuous supply current at 27.6VDC
Filtered and electronically regulated output
AC fail supervision
Low AC (brown-out) supervision
Battery supervision
Built-in charger for sealed lead acid or gel-type batteries
Automatic switch over to standby battery when AC fails
AC input LED indicator

Models: VPS-215, VPS-220 7 VPS-250

EN54-4 Compatible
Available in three types: VLP 2A, VLC 1.5A, Multiple 5A
Temperature compensated charging to maximize battery life
Designed to blend in with VESDA detectors
Knockouts designed to line up with VESDA units
Multiple battery back-up configurations
LED indication on 2A and 5A units
Relay outputs for connection to the VESDA general-purpose input

FEATURES

Models VPS-100US and VPS300US:

120 VAC (+10% / -15%); 60Hz; 1.4 amp max.
1.5 amp continuous supply current at 27.6VDC
Filtered and electronically regulated output
AC fail supervision
Low AC (brown-out) supervision
Battery supervision
Built-in charger for sealed lead acid or gel-type batteries
Automatic switch over to standby battery when AC fails
AC input LED indicator

Models: VPS-215, VPS-220 7 VPS-250

EN54-4 Compatible
Available in three types: VLP 2A, VLC 1.5A, Multiple 5A
Temperature compensated charging to maximize battery life
Designed to blend in with VESDA detectors
Knockouts designed to line up with VESDA units
Multiple battery back-up configurations
LED indication on 2A and 5A units
Relay outputs for connection to the VESDA general-purpose input

CERTIFICATIONS

Models VPS-100US and VPS300US:

UL 1481 listed
ULC
FM (for VPS-100US)
CSFM

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Xtralis Power Supply Units Style_E Data Sheet

Xtralis Power Supply Style_U Data Sheet

VESDA Power Supply Model VPS-400US/48 Technical Data Sheet

VESDA Power Supply Data Sheet, Americas

VESDA PSU VSP-725 TDS, English

Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
