VESDA Sensepoint XCL – Large Bore | VESDA Sensepoint XCL Large Bore

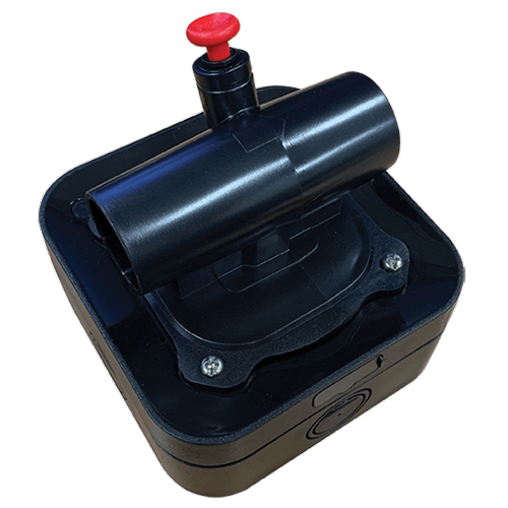

VESDA Sensepoint XCL - Large Bore Aspirating Gas Detector

VESDA Sensepoint XCL – Large Bore is a gas detection solution that utilizes the ASD pipe network to deliver superior gas detection via multiple hole (multi-point) sampling. The combined solution provides reliable detection of gases for occupant protection and process monitoring whilst simultaneously ensuring protection against fire threats.

The VESDA Sensepoint XCL – Large Bore portfolio has a range of gas sensors that addresses a wide range of applications and through its Bluetooth interface can be paired with a smart device for commissioning and maintenance. The smart device application (Sensepoint App) provides quick access to detector diagnostic information and simplifies detector configuration, calibration and bump testing.

Model Nos. XCL-LB-XX-RA / XCL-LB-XX-RM, (XX: Gas version, RA: Analogue, Relays, RM: Modbus, Relays)
Download VESDA Sensepoint XCL - Large Bore Data Sheet VESDA Sensepoint XCL - Large Bore Data Sheet




* The Ammonia (NH3, ppm) detector will be available in Q3 2020. Xtralis will communicate availability closer to release.

FEATURES
APPLICATIONS
APPROVALS
SERVICE & SUPPORT
ORDERING INFORMATION
  • Wide range of gases to support most application needs:
    • Carbon Monoxide (CO, ppm)
    • Flammable gases (% LEL)
    • Oxygen (O2, % v/v)
    • Carbon Dioxide (CO2, % v/v, ppm)
    • Hydrogen (H2, ppm)
    • Hydrogen Sulphide (H2S, ppm)
    • Nitrogen Dioxide (NO2, ppm)
    • Ammonia (NH3, ppm)
  • Aspirated gas sampling technology:
    • Multi-point sampling provides greater coverage and increased design flexibility
    • Remote sampling eliminates the need to enter the protected zone
    • Centralized location saves time and money for service and maintenance
    • Detector protection against environmental condition ensures reliable long-term operation
  • Integral alarm status LED’s
  • Integral gas port for bump test and calibration
  • Field replaceable gas sensor cartridges
  • Smart device application (Sensepoint App) enables faster detector commissioning, maintenance and service
  • Multiple output options: 2 x configurable relays (Alarm, Fault), Analog 4-20mA or Modbus RTU



GAS DETECTION & RANGES

Each VESDA Sensepoint XCL - Large Bore detector can be added easily to the pipe network to monitor gases and multiple detectors can be connected to a single pipe. Product portfolio comprises a range of gas sensors that address a wide range of applications:

VESDA Sensepoint XCL Detection Ranges
VESDA Sensepoint XCL Detection Ranges



Accessories

For VESDA Sensepoint XCL – Large Bore (Modbus version) installations requiring additional relay outputs, users can opt to network detectors to the VESDA Sensepoint 301C Gas Controller. The Gas Controller provides additional relay outputs and enables centralised configuration and monitoring of a network of detectors. For additional information refer to the Technical Data Sheet.




FEATURES
  • Wide range of gases to support most application needs:
    • Carbon Monoxide (CO, ppm)
    • Flammable gases (% LEL)
    • Oxygen (O2, % v/v)
    • Carbon Dioxide (CO2, % v/v, ppm)
    • Hydrogen (H2, ppm)
    • Hydrogen Sulphide (H2S, ppm)
    • Nitrogen Dioxide (NO2, ppm)
    • Ammonia (NH3, ppm)
  • Aspirated gas sampling technology:
    • Multi-point sampling provides greater coverage and increased design flexibility
    • Remote sampling eliminates the need to enter the protected zone
    • Centralized location saves time and money for service and maintenance
    • Detector protection against environmental condition ensures reliable long-term operation
  • Integral alarm status LED’s
  • Integral gas port for bump test and calibration
  • Field replaceable gas sensor cartridges
  • Smart device application (Sensepoint App) enables faster detector commissioning, maintenance and service
  • Multiple output options: 2 x configurable relays (Alarm, Fault), Analog 4-20mA or Modbus RTU



GAS DETECTION & RANGES

Each VESDA Sensepoint XCL - Large Bore detector can be added easily to the pipe network to monitor gases and multiple detectors can be connected to a single pipe. Product portfolio comprises a range of gas sensors that address a wide range of applications:

VESDA Sensepoint XCL Detection Ranges
VESDA Sensepoint XCL Detection Ranges



Accessories

For VESDA Sensepoint XCL – Large Bore (Modbus version) installations requiring additional relay outputs, users can opt to network detectors to the VESDA Sensepoint 301C Gas Controller. The Gas Controller provides additional relay outputs and enables centralised configuration and monitoring of a network of detectors. For additional information refer to the Technical Data Sheet.



APPLICATIONS
  • Energy storage systems (batteries)
  • Fuel storage and distribution lines
  • Service tunnels
  • Confined / Underground areas
  • Heating plant rooms
  • Manufacturing / Petroleum / Chemical industries
  • Parking garages / Loading bays
  • Power generation
  • Refrigerated storage
  • Waste handling facilities / Landfill sites
  • Agriculture
  • Water treatment / Sewerage plants
  • Health care / Hospitals / Laboratories
  • Food / Beverage industry
  • Vehicle test facilities
APPROVALS
  • Electrical Safety
    • Conforms to EN/UL/IEC61010-1
    • Certified to CSA-C22.2 No. 61010-1-12
  • CE - EMC
    • EN 50270
  • RADIO
    • RED, FCC, BT SIG
  • OTHERS
    • UL2075 (CO and CH4), AS 1668.2
SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

ORDERING INFORMATION

VESDA Sensepoint XCL gas detectors come complete with the main detector unit (preinstalled with the sensor cartridge), flow cap and elbows. Two variants are available based on detector outputs (mA analog, Modbus RTU).
