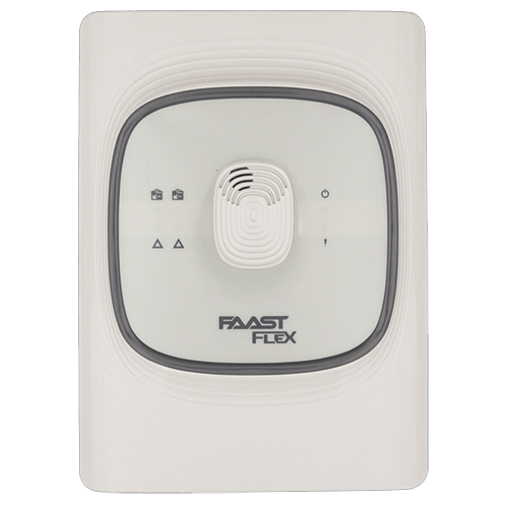

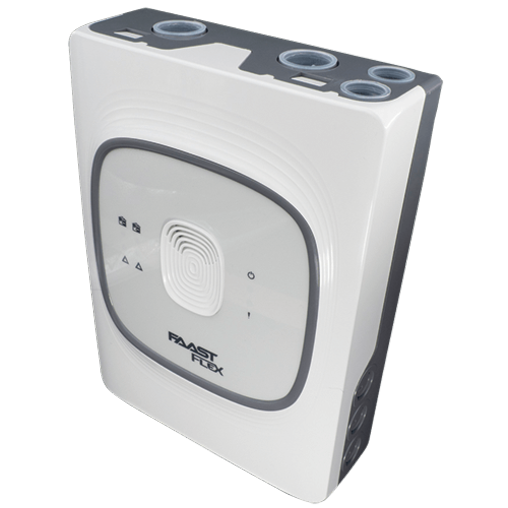

FAAST FLEX™ Aspirating Smoke Detector

Now available in Europe, Middle East, Africa, Asia Pacific and Latin America. Soon available in China and Korea.

Small and medium businesses (SMBs) are vital to the world’s economy. Protecting them against fire is critical and so is keeping downtime and cost to a minimum. This is where Xtralis’ FAAST FLEX™ Aspirating Smoke Detector (ASD) can help.

FAAST FLEX combines effective and reliable aspirating smoke detection with ease of design, installation, and maintenance. FAAST FLEX is ideal for enhanced and standard sensitivity applications, offering a highly flexible and cost-effective ASD solution for various SMB environments from small warehouses and elevator shafts to refrigerated storage facilities and transformer rooms.

Model Nos. FLX-010, FLX-020

FAAST FLEX Product Guide

FAAST FLEX Product Guide, German

FAAST FLEX Product Guide, Italian

FAAST FLEX Product Guide, Spanish

HOW TO ACHIEVE OPTIMAL DETECTION WITH A LOW TOTAL COST OF OWNERSHIP (TCO)

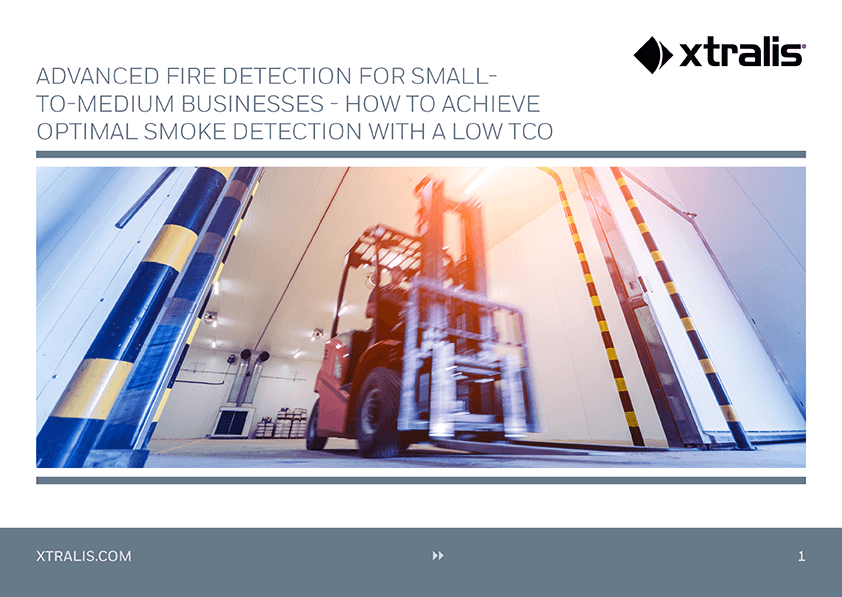

Download our e-guide to learn how small and medium businesses can leverage reliable early warning smoke detection while minimizing downtime and cost. The guide looks at:

How ASD technology can support the industry, helping SMBs optimize fire safety and reduce TCO
How to overcome the limitations of traditional smoke detection
Key steps to simpler design, installation, and maintenance challenges; and
Examples of ASD solutions for specific SMB applications include refrigerated storage, warehousing, and elevator shafts.

DOWNLOAD THE GUIDE

DISCOVER FAAST FLEX ASD

Learn more about the new FAAST FLEX ASD range and how it can help small and medium businesses reduce downtime and operational costs.

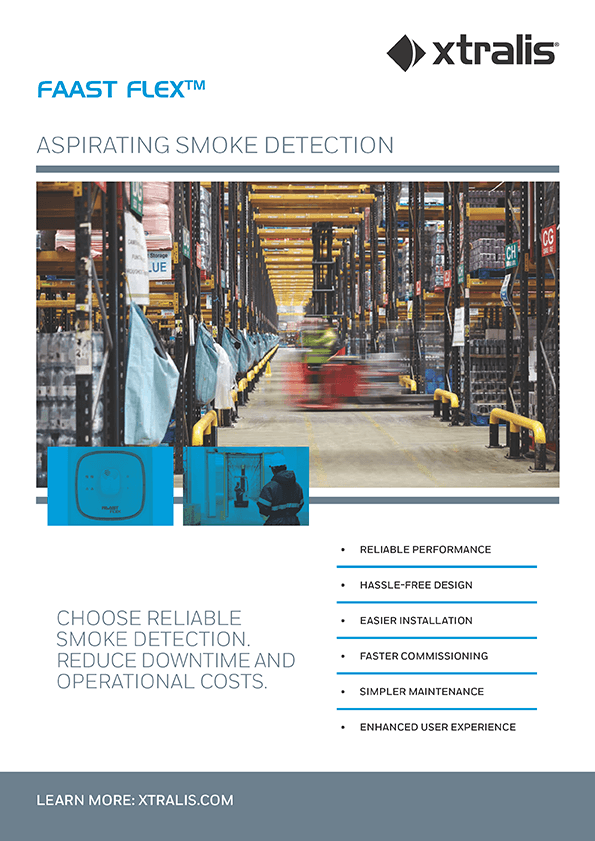

READ THE BROCHURE

FAAST FLEX IN ACTION

Check out how FAAST FLEX ASD delivers optimized detection reliability, simplified design and reduced TCO for a wide range of applications

HOW TO ACHIEVE OPTIMAL DETECTION WITH A LOW TOTAL COST OF OWNERSHIP (TCO)

Download our e-guide to learn how small and medium businesses can leverage reliable early warning smoke detection while minimizing downtime and cost. The guide looks at:

How ASD technology can support the industry, helping SMBs optimize fire safety and reduce TCO
How to overcome the limitations of traditional smoke detection
Key steps to simpler design, installation, and maintenance challenges; and
Examples of ASD solutions for specific SMB applications include refrigerated storage, warehousing, and elevator shafts.

DOWNLOAD THE GUIDE

DISCOVER FAAST FLEX ASD

Learn more about the new FAAST FLEX ASD range and how it can help small and medium businesses reduce downtime and operational costs.

READ THE BROCHURE

FAAST FLEX IN ACTION

Check out how FAAST FLEX ASD delivers optimized detection reliability, simplified design and reduced TCO for a wide range of applications

FEATURES

APPLICATIONS

CERTIFICATIONS

SERVICE & SUPPORT

Single & Dual channel variants with area coverage up to 1,600m² (17,200 sq. ft) for single channel and 2,000m² (21,527 sq. ft) for dual channel
Two configuration modes:
- Out-of-box with built-in user-friendly configuration and control mechanism for speedy commissioning
- Extended mode for enhanced user experience using a Bluetooth interface
Modular design with in-field replaceable chamber, filter, and aspirator for ease of service and maintenance
Quiet operation (30db) with adjustable fan speed to suit various environments
Suitable for cold storage environments with -40 °C (-40°F) operating temperature
IP40 rating for protection against ingress of foreign bodies

* Bluetooth capability will be available at a later date and will be communicated accordingly.

FEATURES

Single & Dual channel variants with area coverage up to 1,600m² (17,200 sq. ft) for single channel and 2,000m² (21,527 sq. ft) for dual channel
Two configuration modes:
- Out-of-box with built-in user-friendly configuration and control mechanism for speedy commissioning
- Extended mode for enhanced user experience using a Bluetooth interface
Modular design with in-field replaceable chamber, filter, and aspirator for ease of service and maintenance
Quiet operation (30db) with adjustable fan speed to suit various environments
Suitable for cold storage environments with -40 °C (-40°F) operating temperature
IP40 rating for protection against ingress of foreign bodies

* Bluetooth capability will be available at a later date and will be communicated accordingly.

APPLICATIONS

Warehouse (small to medium)
Refrigerated Storage Facilities
Elevator Shafts
Ceiling and Underfloor Voids
Transformer and Electrical Rooms
Low Noise Environments

CERTIFICATIONS

VdS
EN 54-20, ISO 7240:20
CE
ActivFire
PBST

SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Product Warranty (as of 07 Nov. 2022)

FAAST FLEX Product Bulletin

FAAST FLEX Data Sheet

FAAST FLEX Product Guide

FAAST FLEX Product Guide, German

FAAST FLEX Product Guide, Italian

FAAST FLEX Product Guide, Spanish

FAAST FLEX Product Guide, Russian

FAAST FLEX Engineering Specifications

FAAST FLEX Refrigerated Design Guide

FAAST FLEX Lift/Shaft Application Note

FAAST FLEX Double Knock and Redundancy Application Note

FAAST FLEX FAQs

FAAST FLEX Product Brochure

FAAST FLEX HMP Haslar Prison Case Study

FAAST FLEX WINTECH's South Korea Warehouse Case Study

FAAST FLEX Declaration of Performance

FAAST FLEX Declaration of Conformity

CPR Certificate - FAAST FLEX

ActivFire Approval Certificate for FAAST FLEX

VdS Certificate of Approval for FAAST FLEX

PBST Austria Approval Certificate for FAAST FLEX

FAAST FLEX ASPIRE Software 3.10 (4918)

FAAST FLEX ASPIRE Pipe Network Design Instructions

VIDEOS

FAAST FLEX Introduction Video

FAAST FLEX: How to Change the Passcode

FAAST FLEX: How to Commission and Configure

FAAST FLEX: How to Utilitie Dip Switches

FAAST FLEX: How to Invert and Mount

FAAST FLEX: How to Normalize the Unit

FAAST FLEX: How to Replace the Aspirator

FAAST FLEX: How to Install Upright
